Dimensional Chart Double Reduction Bevel Helical Gearboxes B2 Type, Transmission Ratio 5.00

Type B2 –Foot Mounted Units
Double Reduction – Right Angle Shafts - Principal Dimensions (mm)
DIMENSIONS

INPUT SHAFT	OUTPUT SHAFT

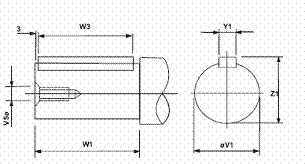

Input Shaft							Output Shafts
Unit size	V	V4	W	W2	Y	Z	V1	V5	W1	W3	Y1	Z1

140	28.009 27.996	M8x20	60	53	8.000 7.964	31.0 30.8	70.030 70.011	M24x52	140	130	20.000 19.948	74.5 74.3

160	32.018 32.002	M8x20	80	73	10.000 9.964	35.0 34.8	75.030 75.011	M24x52	140	130	20.000 19.948	79.5 79.3

180	38.018 38.002	M16x36	80	73	10.000 9.964	41.0 40.8	85.035 85.013	M24x52	170	160	22.000 19.948	90.0 89.8

200	45.018 45.002	M16x32	110	102	14.000 13.957	48.5 48.3	90.035 90.013	M24x50	170	160	25.000 24.948	95.0 94.8

225	50.018 50.002	M16x32	110	102	14.000 13.957	53.5 53.3	100.035 100.013	M24x50	210	200	28.000 27.948	106.0 105.8

250	55.030 55.011	M16x32	110	102	16.000 15.957	59.0 58.8	110.035 110.013	M30x60	210	200	28.000 27.948	116.0 115.8

280	65.030 65.011	M24x50	140	130	18.000 17.957	69.0 68.8	125.040 125.015	M30x60	210	200	32.000 31.938	132.0 131.8

315	75.030 75.011	M24x50	140	130	20.000 19.948	79.5 79.3	140.040 140.015	M30x60	250	240	36.000 35.938	148.0 147.7

355	85.035 85.013	M24X50	170	160	22.000 21.948	90.0 89.8	160.040 160.015	M42x80	300	290	40.000 39.938	169.0 168.7

400	90.035 90.013	M24x50	170	160	25.000 24.948	95.0 94.8	180.040 180.015	M42x80	300	290	45.000 44.938	190.0 189.7

450	100.035 100.013	M24X50	210	200	28.000 27.948	106.0 105.8	200.046 200.017	M42x80	350	340	45.000 44.938	210.0 209.7

500	125.040 125.015	M30X60	210	200	32.000 31.938	132.0 131.8	220.046 220.017	M56x105	350	340	50.000 49.938	231.0 230.7

Type B2SF –Foot /Shaft Mounted Units Double Reduction – Right Angle Shafts - Principal Dimensions (mm) DIMENSIONS SHAFT HANDING/ROTATION
Opposite Rotation Available

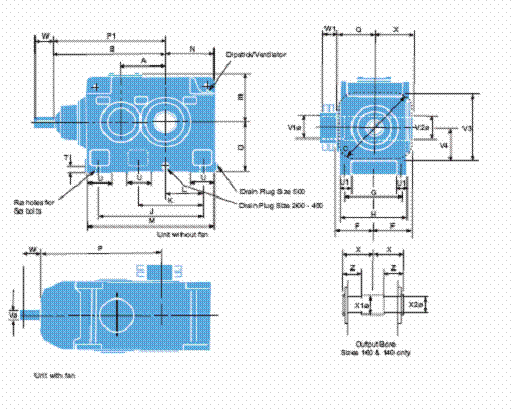

Type B2SF –Foot/ Shaft Mounted Units Double Reduction – Right Angle Shafts - Principal Dimensions (mm) DIMENSIONS

Unit size	A	B	C	D	E	F	G	H	J	K	L	M	N	P	P1	Q
140	140	390	300	160	174	135	190	224	335	-	120	425	165	435	395	-
160	160	430	350	180	194	155	225	260	375	-	135	475	185	475	435	-
180	180	480	375	200	214	170	250	290	425	-	147.5	530	200	530	485	175
200	200	520	400	225	239	180	265	310	475	-	165	595	225	575	525	185
225	225	575	445	250	267	203	280	340	530	-	185	660	250	635	580	205
250	250	630	480	280	298	215	300	370	600	-	210	740	280	695	635	220
280	280	715	520	315	327	237	335	410	670	-	240	820	315	785	720	240
315	315	800	560	355	350	256	375	450	750	-	270	920	355	875	805	260
355	355	870	630	400	405	286	425	500	865	530	305	1055	400	950	875	290
400	400	990	700	450	456	320	475	560	1000	600	350	1200	450	1075	995	325
450	450	1100	780	500	497	360	530	640	1120	670	395	1330	500	1190	1105	365
500	500	1270	850	560	552	410	630	720	1250	750	440	1490	560	1375	1280	420

Unit size	R	S	T	U	U1	V	V1	V2	V3	V4	W	W1	X	X1	X2	Z
140	14	4x12	20	100	60	28	-	-	230	105	60	-	140	75	75	75
160	18	4x16	20	110	70	32	-	-	263	125	80	-	160	86	85	85
180	18	4x16	25	120	85	38	85	90	295	145	80	65	175	-	-	-
200	22	4x20	25	125	90	45	95	100	305	140	110	70	185	-	-	-
225	22	4x20	30	130	95	50	115	120	356	171	110	80	205	-	-	-
250	26	4x24	30	140	115	55	125	130	402	190	110	90	220	-	-	-
280	26	4x24	35	160	125	65	140	145	450	225	140	105	240	-	-	-
315	33	4x30	40	180	130	75	160	165	480	230	140	110	260	-	-	-
355	33	6x30	50	200	155	85	170	175	540	270	170	130	290	-	-	-
400	39	6x36	55	220	175	90	190	200	618	300	170	150	325	-	-	-
450	39	6x36	60	250	195	100	220	230	650	320	210	160	365	-	-	-
500	45	6x42	65	280	220	125	250	260	700	340	210	185	420	-	-	-

Type B2SF –Foot/ Shaft Mounted Units
Double Reduction – Right Angle Shafts - Principal Dimensions (mm)
DIMENSIONS

INPUT SHAFT	Output Sleeve Bores
