Agnee has developed Planetary Gearbox for various Industrial applications operated by Electric motor and Hydraulic motor. Agnee providing customers with High Quality, Cost Effective, Power saving, Planetary gear box with wide range of power transmissions.

So feel free to become a privileged buyer and purchase for the most competitive prices offered by us.

Principle:
Planetary Reduction Gearbox consist of an Internal toothed Ring Gear to which are set 3 Planets mounted on the Planet Carrier engaging also with the Sun Gear (Pinion) and reduced output speed is taken through Planet Carrier and Ring Gear is remain stationary. Output shaft maintaining the same direction of rotation as Input.

Salient Features Planetary Gearbox:
High Reduction Ratios, Power Saving, High Efficiency Long Life, Space-Saving Compactness, Higher Overload Capacity, Reliable and Trouble-Free Service, Compact and Co-Axial Sturdy, No-Self Locking Property.


Send Enquiry

Rating Chart of Planetary
Gearboxes

Dimensional Charts
PLANETARY GEARBOX MOUNTING TYPE FOOT- MODEL B201 to B904 & B1002 to B1504

PLANETARY GEARBOX MOUNTING TYPE Flange- MODEL B201 to B904 & B1002 to B1504

BEVEL PLANETARY GEAR BOX MOUNTING TYPE-FOOT MODEL B 201B to B 904B

BEVEL PLANETARY GEAR BOX MOUNTING TYPE-FLANGE MODEL B 201B to B 904B

PLANETARY GEAR BOX FOR AGITATOR APPLICATION

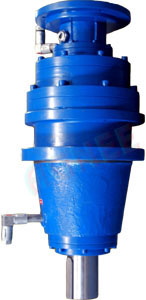

Agitator Mounting


Mini Planetary Gearbox

Material Construction
1)  Graded Cast Iron Housing
2)  High tensile Steel Shafts
3)  High Tensile Alloy Steel Gears
4)  Carbon Steel Planet Carriers

            Bevel Planetary Gearbox

B602 Planetary Gearbox

Input Solid Shaft, Foot Mounted Planetary Gearbox

Input Hollow Shaft, Foot type Planetary Gearboxes

Input Hollow Shaft, Flange Type Planetary Gearboxes

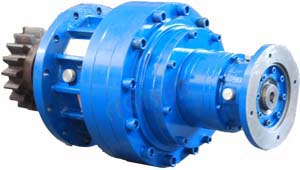

Side-Back View-Four Stage Planetary Gear Box

Technical Specifications

Kindly furnish the following Technical Data and Information for selection of Planetary Reduction Gearbox.
1)Application
2)Prime Mover (Electric motor / Hydraulic motor) :
3)Input Shaft (rpm)
4)Output Speed (rpm)
5)Reduction Ratio
6)Input Power (HP/ Kw)
7)Output Torque (kg-m or Nm)
8)Load Nature Uniform (U)/ Moderate Shock (M) / Heavy shock (H):
9)Service Duration (Hrs)
   (Daily operating hours)
10)Operating Cycle (Minutes cycle)
11)Operating Position

Applications of Planetary gearbox:
Planetary gearbox has its application in Machine tools, Plastic Machinery, Goods & Personnel lifts, Derrick & Dockyard Cranes, Material handling equipments, Truck mounted mobile cranes etc. Dredging Equipments, Road Making Machinery Sugar Crystallizers and mill drives. Industries covered :
Planetary gearbox is used in Steel Plants, Sugar Plants.

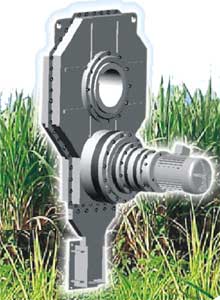

Sugar Crystalliser Drive

AGNEE offers easy-to-fit, shaft mounted Crystalliser drives rated up to 10.0 HP, and for output speeds 1 to 0.25 RPM to cover standard range of horizontal type sugar crystallisers 30 T to 150 T capacities and up to 350 T capacity for vertical crystallisers. Developed after an in-depth study of typical crystalliser installations, AGNEE crystalliser drive employs high efficiency spur gearing instead of conventionally used worm gearing. The overall efficiency of AGNEE crystalliser drives is better than 90% and the installed motor rating is optimally used resulting in attractive savings in power consumption.

The drive arrangement consist of electric motor a multi-stage planetary gear reducer and a single stage spur gear transmission. The electric motor is flanged-mounted to the input of the planetary gear reducer, which in turn is flange-mounted to the input of spur gear transmission. The hollow input of the spur transmission can be keyed directly on to the crystalliser shaft. The drive unit can be aligned in a convenient direction with respect to the crystalliser axis and its torque arm structure is to be bolted at the convenient place. No other additional structure, such as base frames or any couplings are required. The drive unit is completely enclosed & oil-tight. All internals including bearings are oil-lubricated, oil change is recommended only once a season.
