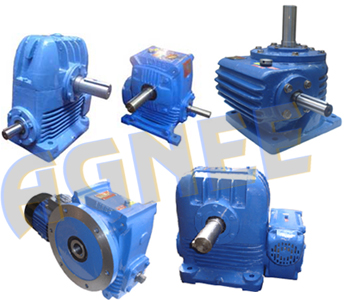

The AGNEE Worm Gearboxes have Cast Iron Gear Case of streamlined design completely air tight, dust proof and capable of being installed in open without any cover. The Worm Shaft is made of Alloy Steel, duly hardened and tempered. The Worm Wheel is made of Chill Cast Phosphorous Bronze and teeth accurately Generated on Gear Hobbing Machines. They are supported on Extra Heavy Duty Taper Roller anti friction Bearings of ample margin of safety to allow adequate journals as well as thrust loads. Lubrication is effected by splash of oil from the sump. Thus, no special care is required except for occasional oil topping to the required level. Air cooling is effected by means of standard polypropylene or metal fans. Please read the Selection of Correct Worm gearbox for choosing the correct one for your application. They are available in:

• Vast range of Models suit every individual's requirement

• Some Models like C.D. 50, 60, 75, 85, 100 mm, Ratio 30:1 or 40:1 are usually available Ex-stock or on short notice

• Center Distances from 40 mm to 400 mm

• In Single or Double Stage Reductions

• Ratios from 5:1 to 4900:1

• Also made as per customer's specifications, Drawing, requirements

• Overhauling of Old Gear Boxes also undertaken, Early delivery schedules

• Adaptable Worm Gear Boxes, range from CD 25mm to 85mm



Right angle worm reduction gearboxes contain input shafts that are positioned perpendicular to the output shafts. Right angle worm gearbox have up to 98% efficiency levels, and are common in printing presses and glass cutting equipment.

Applications:Conveyor, Material Handling, Agitator, Mixer, Ball Mill, Thermal Power Plant, crushers, cranes, elevators, feeders, small ball mills, cooling towers, Extruders, Packaging, Filters .   Industries Covered:Sugar, Elevator, Cement, Paper, Textile, Solvent Extraction, Plastic & leather, Rubber, Steel industry, Power plants, Mines and minerals, Waste water treatment, Food & tobacco

In Stock Worm Reduction Gearboxes

Send Enquiry

Capacity rating chart of Worm gearboxes

Salient Features of AGNEE worm gearboxes

Dimension Charts
Adaptable Worm Gearbox

Horizontal Worm Gearbox

Vertical Worm Gearbox

Solid Shafts, Horizontal Output and Over Driven Input Shaft Worm gear Box

Teeth profile grinding of Worm shafts on worm grinder

Worm gear teeth generation on Gear hobbing machine

Boring of Worm Gearbox Body on Boring Machine

Nearer view of Boring of Worm Gearboxes casing
