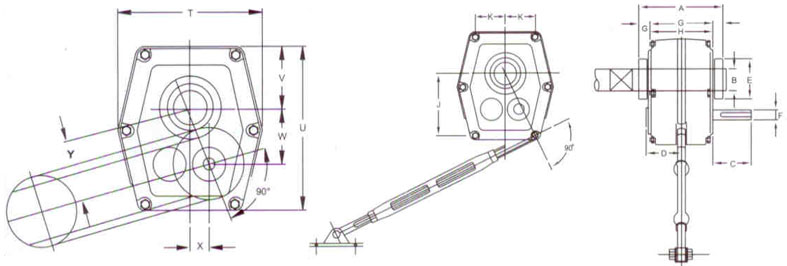

Dimension chart for Shaft Mounted Speed Reducer Sizes B-H

SIZES	A	B		C	D	E	F	Input Shaft Keyway	H	J	K	P	T	U	V	W	X	Y
		Hub Dia
		STD	ALT
B	134	30	40	63	59	80	19j6	6x3.5x50	104	131	55	10	186	226	81	75	25	79
C	142	40	50	72	65	90	22j6	6x3.5x5.6	108	156	59	10	218	270	96	90	31	95
D	152	50	55	77	68	100	25j6	8x4x63	118	188	76	12	258	328	117	110	37	116
E	170	55	65	85	76	115	28j6	8x4x70	130	222	90	12	278	377	129	125	43	133
F	189	65	75	90	87	130	32k6	10x5x70	149	242	98	16	317	414	143	141	50	150
G	212	75	85	105	110	145	42k6	12x5x90	172	277	110	16	365	468	162	156	56	166
H	242	85	100	116	115	170	48K6	14x5.5x100	190	330	88	16	434	550	195	189	62	200

Dimension - Shaft Mounted Speed Reducer Sizes B - H
Power Rating (KW)

OUTPUT RPM	B5	C5	D5	E5	F5	G5	H5	J5
50	1.35	2.50	3.85	5.55	8.30	12.10	19.30	31.50
100	2.69	4.60	6.30	11.20	16.50	25.20	39.00	61.00
150	3.60	5.70	8.90	14..00	20.00	35.00	50.40	78.00
200	4.30	6.70	10.50	16.60	24.00	40.00	60.00	93.00
250	4.60	7.70	12.00	18.00	27.50	46.00	68.00	107.0
OUTPUT RPM	B13 B20	C13 C20	D13 D20	E13 E20	F13 F20	G13 G20	H13 H20	J13 J20
10	0.29	0.50	0.80	1.30	1.90	3.30	4.70	7.45
20	0.60	1.10	1.70	2.50	4.10	7.00	10.00	15.80
30	0.80	1.70	2.60	4.20	6.20	10.50	15.00	24.00
40	1.15	2.20	3.50	5.50	8.10	14.00	20.00	31.00
50	1.40	2.50	4.00	6.30	9.40	16.00	23.00	36.00
60	1.70	3.00	4.70	7.40	11.10	19.00	27.00	42.5
70	1.90	3.30	5.20	8.25	12.10	21.00	30.00	46.00
80	2.20	3.90	6.15	9.65	14.20	24.50	35.00	54.00
90	2.40	4.40	6.80	10.70	15.70	27.00	39.00	60.00
100	2.70	4.60	7.20	11.30	16.60	28.50	41.00	63.50
TORQUE AT 10RPM in NM	275	510	810	1270	1865	3230	4650	7100
TORQUE AT 70 RPM in NM	260	420	740	1120	1790	2950	4550	6600

For speed higher than 70 rpm output use 1:13 or 1:5 ratios

Applications:SMSR’s Have Diverse Application in Material Handling Equipment (Conveyors, Elevators) Industries Covered:Cement, Coal, Steel And Engineering Industries, Textile Processing Industries, Sugar Mills, Food Processing And Dairy Plants, Drugs & Pharmaceutical Plants And Printing Machinery
