Dimensional Chart-Triple Reduction Bevel Helical Gear Boxes B3 Type, Transmission Ratio 14.0

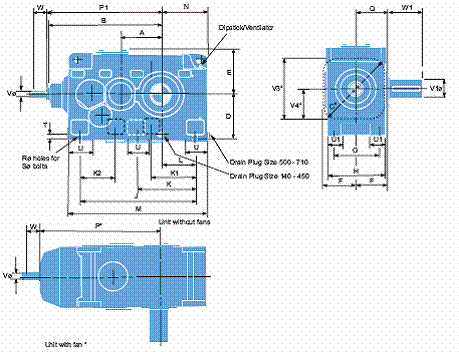

Type B3 –Foot Mounted Units Triple Reduction – Right Angle Shafts - Principal Dimensions (mm) DIMENSIONS

Type B3 –Foot Mounted Units

Triple Reduction – Right Angle Shafts - Principal Dimensions (mm)

DIMENSIONS

Unit size	A	B	C	D	E	F	G	H	J	K	K1	K2	L	M	N	P
140	140	430	305	160	174	135	190	224	405	-	-	-	120	495	165	470
160	160	477	350	180	194	155	225	260	450	-	-	-	135	550	185	520
180	180	530	375	200	214	173	250	290	505	-	-	-	147.5	610	200	570
200	200	590	400	225	239	180	265	310	560	-	-	-	165	680	225	630
225	225	655	445	250	267	203	280	340	630	-	-	-	185	760	250	700
250	250	730	480	280	298	215	300	370	710	-	-	-	210	850	280	780
280	280	800	520	315	327	237	335	410	800	-	-	-	240	950	315	855
315	315	890	560	355	350	256	375	450	900	-	-	-	270	1070	355	950
355	355	985	630	400	405	286	425	500	1005	530	-	-	305	1195	400	1050
400	400	1115	700	450	456	320	475	560	1160	600	-	-	350	1360	450	1185
450	450	1250	780	500	497	360	530	640	1300	670	-	-	395	1510	500	1325
500	500	1370	850	560	552	410	630	720	1460	750	-	-	440	1700	560	1445
560	560	1550	900	630	679	435	670	770	1650	-	560	530	505	1900	630	1630
630	630	1729	1020	710	754	480	750	860	1860	-	630	600	575	2130	710	1815
710	710	1980	1060	800	850	550	850	980	2090	-	710	670	655	2380	800	2070

Unit size

140

435

140

4x12

100

220

140

160

480

160

4x16

110

248

110

140

180

535

175

4x16

120

280

130

170

200

595

185

4x20

125

305

140

170

225

660

205

4x20

130

100

356

171

210

250

735

220

4x24

140

115

110

390

190

210

280

805

240

4x24

160

125

450

225

110

210

315

895

260

4x30

180

130

140

460

230

110

250

355

990

290

6x30

200

155

160

540

270

110

300

400

1120

325

6x36

220

175

180

600

300

140

300

450

1255

365

6x36

250

195

200

640

320

140

350

500

1380

420

6x42

280

220

700

340

170

350

560

1560

445

8x42

320

240

740

370

170

410

630

1740

490

8x48

350

280

100

280

820

410

210

470

710

1990

560

8x48

370

320

125

320

900

450

210

470

Type B3 –Foot Mounted Units
Triple Reduction – Right Angle Shafts - Principal Dimensions (mm)
DIMENSIONS

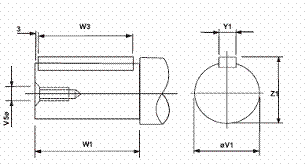

INPUT SHAFT							OUTPUT SHAFT

		Input Shafts								Output Shafts
Unit size	V	V4	W	W2	Y	Z		V1	V5	W1	W3	Y1	Z1
140	20.009 19.996	M6x16	50	43	6.000 5.970	22.5 22.4		70.030 70.011	M24x52	140	130	20.000 19.948	74.5 74.3

160	25.009 24.996	M6x16	60	53	8.000 7.964	28.0 27.8		75.030 75.011	M24x52	140	130	20.000 19.948	79.5 79.3

180	28.009 27.996	M8x20	60	53	8.000 7.964	31.0 30.8		85.035 85.013	M24x52	170	160	22.000 21.948	90.0 89.8

200	28.009 27.996	M8x18	60	53	8.000 7.964	31.0 30.8		90.035 90.013	M24x52	170	160	25.000 24.948	95.0 94.8

225	32.018 32.002	M8x18	80	73	10.000 9.964	35.0 34.8		100.035 100.013	M24x50	210	200	28.000 27.948	106.0 105.8

250	38.018 38.002	M16x32	80	73	10.000 9.964	41.0 40.8		110.035 110.013	M30x60	210	200	28.000 27.948	116.0 115.8

280	45.018 45.002	M16x32	110	102	14.000 13.957	48.5 48.3		125.040 125.015	M30x60	210	200	32.000 31.938	132.0 131.8

315	50.018 50.002	M16x32	110	102	14.000 13.957	53.5 53.3		140.040 140.015	M30x60	250	240	36.000 35.938	148.0 147.7

355	55.030 55.011	M16x32	110	102	16.000 15.957	59.0 58.8		160.040 160.015	M42x80	300	290	40.000 39.938	169.0 168.7

400	65.030 65.011	M24x50	140	130	18.000 17.957	69.0 68.8		180.040 180.015	M42x80	300	290	45.000 44.938	190.0 189.7

450	75.030 75.011	M24x50	140	130	20.000 19.948	79.5 79.3		200.046 200.017	M42x80	350	340	45.000 44.938	210.0 209.7

500	85.035 85.013	M24x50	170	160	22.000 21.948	90.0 89.8		220.046 220.017	M56x105	350	340	50.000 49.938	231.0 230.7

560	90.035 90.013	M24x50	170	160	25.000 24.948	95.0 94.8		240.046 240.017	M56x105	410	400	56.000 55.926	252.0 251.7

630	100.035 100.013	M24x50	210	200	28.000 27.948	106.0 105.8		280.052 280.020	M56x105	470	460	63.000 62.926	292.0 291.7

710	125.040 125.015	M30x60	210	200	32.000 31.938	132.0 131.8		320.057 320.021	M56x105	470	460	70.000 69.926	334.0 330.7

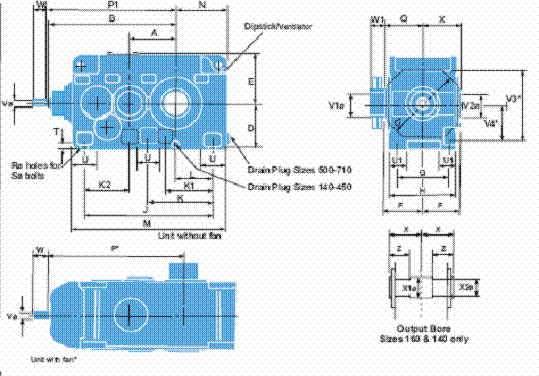

Type B3SF –Foot /Shaft Mounted Units
Triple Reduction – Right Angle Shafts - Principal Dimensions (mm)
DIMENSIONS
SHAFT HANDING/ ROTATION
Opposite Rotation Available

Type B3SF –Foot /Shaft Mounted Units Triple Reduction – Right Angle Shafts - Principal Dimensions (mm) DIMENSIONS

Unit size	A	B	C	D	E	F	G	H	J	K	K1	K2	L	M	N	P*	P1	Q
140	140	430	305	160	174	135	190	224	405	-	-	-	120	495	165	470	435	140
160	160	477	350	180	194	155	225	260	450	-	-	-	135	550	185	520	480	160
180	180	530	375	200	214	173	250	290	505	-	-	-	147.5	610	200	570	535	175
200	200	590	400	225	239	180	265	310	560	-	-	-	165	680	225	630	595	185
225	225	655	445	250	267	203	280	340	630	-	-	-	185	760	250	700	660	205
250	250	730	480	280	298	215	300	370	710	-	-	-	210	850	280	780	735	220
280	280	800	520	315	327	237	335	410	800	-	-	-	240	950	315	855	805	240
315	315	890	560	355	350	256	375	450	900	-	-	-	270	1070	355	950	895	260
355	355	985	630	400	405	286	425	500	1005	530	-	-	305	1195	400	1050	990	290
400	400	1115	700	450	456	320	475	560	1160	600	-	-	350	1360	450	1185	1120	325
450	450	1250	780	500	497	360	530	640	1300	670	-	-	395	1510	500	1325	1255	365
500	500	1370	850	560	552	410	630	720	1460	750	-	-	440	1700	560	1445	1380	420
560	560	1550	900	630	679	435	670	770	1650	-	560	530	505	1900	630	1630	1560	445
630	630	1729	1020	710	754	480	750	860	1860	-	630	600	575	2130	710	1815	1739	490
710	710	1980	1060	800	850	550	850	980	2090	-	710	670	655	2380	800	2070	1990	560

Unit size	R	S	T	U	U1	V	V1	V2	V3	V4*	W	W1	X	X1	X2	Z
140	14	4x12	20	100	60	20	-	-	220	95	50	-	140	76	75	75
160	18	4x16	20	110	70	25	-	-	248	110	60	-	160	86	85	85
180	18	4x16	25	120	85	28	85	90	280	130	60	65	175	-	-	-
200	22	4x20	25	125	90	28	95	100	305	140	60	70	185	-	-	-
225	22	4x20	30	130	95	32	115	120	356	171	80	80	205	-	-	-
250	26	4x24	30	140	115	38	125	130	390	190	80	90	220	-	-	-
280	26	4x24	35	160	125	45	140	145	450	225	110	105	240	-	-	-
315	33	4x30	40	180	130	50	160	165	460	230	110	110	260	-	-	-
355	33	6x30	50	200	155	55	170	175	540	270	110	130	290	-	-	-
400	39	6x36	55	220	175	65	190	200	600	300	140	150	325	-	-	-
450	39	6x36	60	250	195	75	220	230	640	320	140	160	365	-	-	-
500	45	6x42	65	280	220	85	250	260	700	340	170	185	420	-	-	-
560	45	8x42	70	320	240	90	290	300	740	370	170	200	445	-	-	-
630	52	8x48	75	350	280	100	330	340	820	410	210	220	490	-	-	-
710	52	8x48	80	370	320	125	360	370	900	450	210	230	560	-	-	-

Type B3SF –Foot /Shaft Mounted Units
Triple Reduction – Right Angle Shafts - Principal Dimensions (mm)
DIMENSIONS

INPUT SHAFT							Output Sleeve Bores

Input Shafts								OutPut Sleeve Bores
Unit size	V	V4	W	W2	Y	Z		V1	V2	K1	K2	M	N
140	20.009 19.996	M6x16	50	43	6.000 5.970	22.5 22.4		-	-	76	75.060 75.030	80.1 79.9	20.026 19.974

160	25.009 24.996	M6x16	60	53	8.000 7.964	28.0 27.8		-	-	86	85.071 85.036	90.6 90.4	22.026 21.974

180	28.009 27.996	M8x20	60	53	8.000 7.964	31.0 30.8		85.035 85.000	90.047 90.012	-	-	-	-

200	28.009 27.996	M8x18	60	53	8.000 7.964	31.0 30.8		95.035 95.000	100.047 100.012	-	-	-	-

225	32.018 32.002	M8x18	80	73	10.000 9.964	35.0 34.8		115.035 115.000	120.047 120.012	-	-	-	-

250	38.018 38.002	M16x32	80	73	10.000 9.964	41.0 40.8		125.040 125.000	130.054 130.014	-	-	-	-

280	45.018 45.002	M16x32	110	102	14.000 13.957	48.5 48.3		140.040 140.000	145.054 145.014	-	-	-	-

315	50.018 50.002	M16x32	110	102	14.000 13.957	53.5 53.3		160.040 160.000	165.054 165.014	-	-	-	-

355	55.030 55.011	M16x32	110	102	16.000 15.957	59.0 58.8		170.040 170.000	175.054 175.014	-	-	-	-

400	65.030 65.011	M24x50	140	130	18.000 17.957	69.0 68.8		190.046 190.000	200.061 200.015	-	-	-	-

450	75.030 75.011	M24x50	140	130	20.000 19.948	79.5 79.3		220.046 220.000	230.061 230.015	-	-	-	-

500	85.035 85.013	M24x50	170	160	22.000 21.948	90.0 89.8		250.046 250.000	260.069 260.017	-	-	-	-

560	90.035 90.013	M24x50	170	160	25.000 24.948	95.0 94.8		290.052 290.000	300.069 300.017	-	-	-	-

630	100.035 100.013	M24x50	210	200	28.000 27.948	106.0 105.8		330.057 330.000	340.075 340.018	-	-	-	-

710	125.040 125.015	M30x60	210	200	32.000 31.938	132.0 131.8		360.057 360.000	370.075 370.018	-	-	-	-
