Dimensional Chart-Single Reduction Helical Gearboxes H1 Type Transmission Ratio1.20 - 5.62

Dimensional Chart- Single Reduction Helical Gear Boxes H1 Type Transmission Ratio1.20 - 5.62

Dimensional Chart- Double reduction helical gear boxes H2 Type
Dimensional Chart - Triple reduction helical gear boxes H3 Type
Dimensional Chart - Quadruple reduction helical gear boxes H4 type

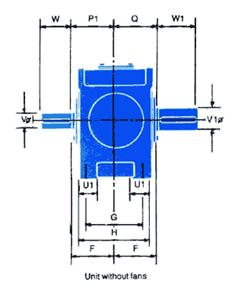

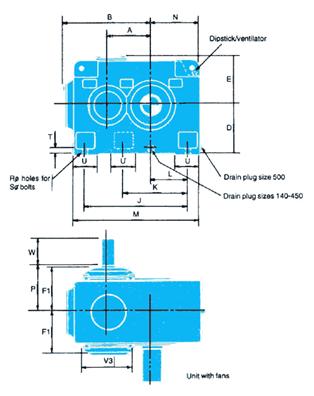

Type H1-Foot Mounted Units
Single Reduction - Parallel Shafts - Principal Dimensions (mm)
DIMENSIONS

Unit Size	A	B	D	E	F	F1	G	H	J	K	L	M	N	P
140	140	299	160	174	135	180	190	224	335	-	120	425	165	185
160	160	342	180	194	155	200	225	260	375	-	135	475	185	205
180	180	382	200	214	170	220	250	290	425	-	147.5	530	200	225
200	200	408	225	239	180	230	265	310	475	-	165	595	225	235
225	225	465	250	267	203	255	280	340	530	-	185	660	250	260
250	250	515	280	298	215	275	300	370	600	-	210	740	280	280
280	280	570	315	327	235	300	335	410	670	-	240	820	315	305
315	315	651	355	350	256	325	375	450	750	-	270	920	355	330
355	355	711	400	405	286	360	425	500	865	530	305	1055	400	365
400	400	808	450	456	320	400	475	560	1000	600	350	1200	450	405
450	450	908	500	497	360	445	530	640	1120	670	395	1330	500	450
500	500	1015	560	624	410	505	630	720	1250	750	440	1490	560	515

Unit Size	P1	Q	R	S	T	U	U1	V	V1	V3	W	W1
140	140	140	14	4x12	20	100	60	45	70	120	110	140
160	160	160	18	4x16	20	110	70	50	75	125	110	140
180	180	175	18	4x16	25	120	85	55	85	135	110	170
200	200	185	22	4x20	25	125	90	60	90	296	140	170
225	225	205	22	4x20	30	130	95	70	100	320	140	210
250	250	220	26	4x24	30	140	115	80	110	350	170	210
280	280	240	26	4x24	35	160	125	90	125	400	170	210
315	315	260	33	4x30	40	180	130	100	140	440	210	250
355	355	290	33	6x30	50	200	155	110	160	500	210	300
400	400	325	39	6x36	55	220	175	125	180	550	210	300
450	450	365	39	6x36	60	250	195	140	200	606	250	350
500	500	420	45	4x42	65	280	220	160	220	660	300	350

Type H1-Foot Mounted Units

Single Reduction - Parallel Shafts - Principal Dimensions (mm)

DIMENSIONS

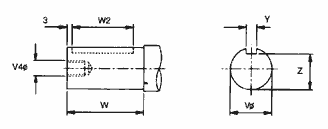

INPUT SHAFT

OUTPUT SHAFT

Unit Size	Input Shafts						Output Shafts
Unit Size	V	V4	W	W2	Y	Z	V1	V5	W1	W3	Y1	Z1
140	45,018 45,002	M16x32	110	102	13,982 13,939	39,5 39,3	70,030 70,011	M24x50	140	130	19,978 19,926	62,5 62,3
160	50,018 50,002	M16x32	110	102	13,982 13,939	44,5 44,3	75,030 75,011	M24x50	140	130	19,978 19,926	67,5 67,3
180	55,030 55,011	M16x32	110	102	15,982 15,939	49,0 48,8	85,035 85,013	M24x50	170	160	21,978 21,926	76,0 75,8
200	60,030 60,011	M24x50	140	130	17,982 17,939	53,0 52,8	90,035 90,013	M24x50	170	160	24,978 24,926	81,0 80,8
225	70,030 70,011	M24x50	140	130	19,978 19,926	62,5 62,3	100,035 100,013	M24x50	210	200	27,978 27,926	90,0 89,8
250	80,030 80,011	M24x50	170	160	21,978 21,926	71,0 70,8	110,035 110,013	M30x60	210	200	27,978 27,926	100,0 99,8
280	90,035 90,013	M24x50	170	160	24,978 24,926	81,0 80,8	125,040 125,015	M30x60	210	200	31,974 31,912	114,0 113,8
315	100,035 100,013	M24x50	210	200	27,978 27,926	90,0 89,8	140,040 140,015	M30x60	250	240	35,974 35,912	128,0 127,7
355	110,035 110,013	M30x60	210	200	27,978 27,926	100,0 99,8	160,040 160,015	M42x80	300	290	39,974 39,912	147,0 146,7
400	125,040 125,015	M30x60	210	200	31,974 31,912	114,0 113,8	180,040 180,015	M42x80	300	290	44,974 44,912	165,0 164,7
450	140,040 140,015	M30x60	250	240	35,974 35,912	128,0 127,7	200,046 200,017	M42x80	350	340	44,974 44,912	185,0 184,7
500	160,040 160,015	M42x80	300	290	39,974 39,912	147,0 146,7	200,046 220,017	M56x105	350	340	49,974 49,912	203,0 202,7
