Dimensional Chart-BEVEL PLANETARY GEARBOX,Mounting Type-FOOT,Model B101B-B904

Double Stage Planetary Gear Box

Model	Output				Mounting								Others				Motor
Model	Dj6	H	JP9	L 1	C	E	F	M	N	G	S	K	A	P	L	B	Frame
B 602B	80	85.5	22	110	160	200	300	250	350	137	18	25	290	367	329	208	80-112
B 702B	95	100	25	135	200	250	350	300	400	162	22	25	330	424	438	250	100-160
B 802B	110	116	28	170	200	250	350	300	400	197	22	25	355	454	449	290	100-180
B 902B	120	127	32	180	250	300	400	360	460	213	26	30	400	510	487	330	100-180

Triple Stage Planetary Gear Box

Model	Output				Mounting								Others				Motor
Model	Dj6	H	JP9	L 1	C	E	F	M	N	G	S	K	A	P	L	B	Frame
B 603B	80	85.5	22	110	160	200	300	250	350	137	18	25	290	441	326	155	63-112
B 703B	95	100	25	135	200	250	350	300	400	162	22	25	330	471	326	155	80-112
B 803B	110	116	28	170	200	250	350	300	400	197	22	25	355	508	329	205	80-112
B 903B	120	127	32	180	250	300	400	360	460	213	26	30	400	570	438	250	100-160

Four Stage Planetary Gear Box

Model	Output				Mounting								Others				Motor
Model	Dj6	H	JP9	L 1	C	E	F	M	N	G	S	K	A	P	L	B	Frame
B 604B	80	85.5	22	110	160	200	300	250	350	137	18	25	290	441	238	135	63-112
B 704B	95	100	25	135	200	250	350	300	400	162	22	25	330	545	326	155	71-112
B 804B	110	116	28	170	200	250	350	300	400	197	22	25	355	567	326	155	80-112
B 904B	120	127	32	180	250	300	400	360	460	213	26	30	400	617	326	155	80-112

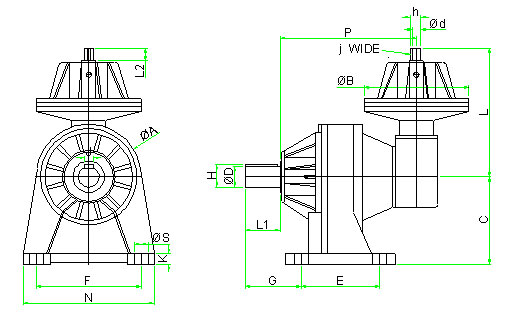

SOLID INPUT SHAFT, OUTPUT-MALE SHAFT (FREE) D
SIZES FROM B 201B TO B 504B

Single Stage Planetary Gearbox

Model	Output				Input				Mounting								Others
Model	Dj6	H	JP9	L1	dj6	h	jP9	L2	C	E	F	M	N	G	S	K	A	P	L	B
B 201B	28	31	8	40	14	16	5	20	100	90	120	120	150	64	14	12	135	164	167	120
B 301B	38	41	10	55	28	31	8	40	100	90	140	120	170	71	14	15	155	211	283	135
B 401B	50	53.5	14	75	28	31	8	40	120	110	180	150	220	97	14	15	205	225	283	135
B 501B	65	69	18	90	28	31	8	40	140	150	210	200	260	117	18	20	250	306	346	155

Double Stage Planetary Gearbox

Model	Output				Input				Mounting								Others
Model	Dj6	H	J P9	L1	d j6	h	j P9	L2	C	E	F	M	N	G	S	K	A	P	L	B
B 202B	28	31	8	40	14	16	5	20	100	90	120	120	150	64	14	12	135	164	167	120
B 302B	38	41	10	55	28	31	8	40	100	90	140	120	170	71	14	15	155	211	283	135
B 402B	50	53.5	14	75	28	31	8	40	120	110	180	150	220	97	14	15	205	225	283	135
B 502B	65	69	18	90	28	31	8	40	140	150	210	200	260	117	18	20	250	306	346	155

Triple Stage Planetary Gearbox

Model	Output				Input				Mounting								Others
Model	Dj6	H	J P9	L1	d j6	h	j P9	L2	C	E	F	M	N	G	S	K	A	P	L	B
B 203B	28	31	8	40	14	16	5	20	100	90	120	120	150	64	14	12	135	212	167	120
B 303B	38	41	10	55	28	31	8	40	100	90	140	120	170	71	14	15	155	259	283	135
B 403B	50	53.5	14	75	28	31	8	40	120	110	180	150	220	97	14	15	205	272	283	135
B 503B	65	69	18	90	28	31	8	40	140	150	210	200	260	117	18	20	250	312	283	135

Four Stage Planetary Gearbox

Model	Output				Input				Mounting								Others
Model	Dj6	H	J P9	L1	d j6	h	j P9	L2	C	E	F	M	N	G	S	K	A	P	L	B
B 204B	28	31	8	40	14	16	5	20	100	90	120	120	150	64	14	12	135	260	167	120
B 304B	38	41	10	55	14	16	5	20	100	90	140	120	170	71	14	15	155	266	167	135
B 404B	50	53.5	14	75	28	31	8	40	120	110	180	150	220	97	14	15	205	320	283	135
B 504B	65	69	18	90	28	31	8	40	140	150	210	200	260	117	18	20	250	360	283	135

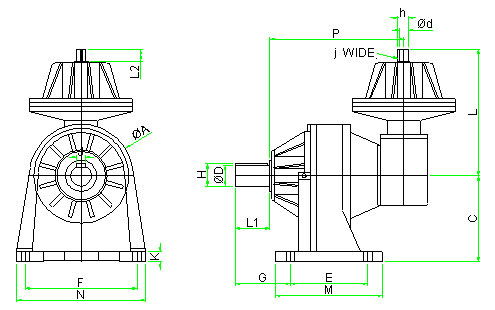

SOLID INPUT SHAFT, OUTPUT-MALE SHAFT (FREE) D
SIZES FROM B 601B TO B 904B

Single Stage Planetary Gear Box

Model	Output				Input				Mounting								Others
Model	Dj6	H	J P9	L1	d j6	h	j P9	L2	C	E	F	M	N	G	S	K	A	P	L	B
B 601B	80	85.5	22	110	28	31	8	40	160	200	300	250	350	137	18	25	290	367	349	205
B 701B	95	100	25	135	50	53.5	14	70	200	250	350	300	400	162	22	25	330	424	481	250
B 801B	110	116	28	170	50	53.5	14	70	200	250	350	300	400	197	22	25	355	454	490	290
B 901B	120	127	32	180	50	53.5	14	70	250	300	400	360	460	213	26	30	400	510	528	330

Double Stage Planetary Gear Box

Model	Output				Input				Mounting								Others
Model	Dj6	H	J P9	L1	d j6	h	j P9	L2	C	E	F	M	N	G	S	K	A	P	L	B
B 602B	80	85.5	22	110	28	31	8	40	160	200	300	250	350	137	18	25	290	367	349	205
B 702B	95	100	25	135	50	53.5	14	70	200	250	350	300	400	162	22	25	330	424	481	250
B 802B	110	116	28	170	50	53.5	14	70	200	250	350	300	400	197	22	25	355	454	490	290
B 902B	120	127	32	180	50	53.5	14	70	250	300	400	360	460	213	26	30	400	510	528	330

Triple Stage Planetary Gear Box

Model	Output				Input				Mounting								Others
Model	Dj6	H	J P9	L1	d j6	h	j P9	L2	C	E	F	M	N	G	S	K	A	P	L	B
B 603B	80	85.5	22	110	28	31	8	40	160	200	300	250	350	137	18	25	290	440	283	135
B 703B	95	100	25	135	28	31	8	40	200	250	350	300	400	162	22	25	330	471	346	155
B 803B	110	116	28	170	28	31	8	40	200	250	350	300	400	197	22	25	355	508	349	205
B 903B	120	127	32	180	50	53.5	14	70	250	300	400	360	460	213	26	30	400	570	481	250

Four Stage Planetary Gear Box

Model	Output				Input				Mounting								Others
Model	Dj6	H	J P9	L1	d j6	h	j P9	L2	C	E	F	M	N	G	S	K	A	P	L	B
B 604B	80	85.5	22	110	28	31	8	40	160	200	300	250	350	137	18	25	290	441	283	135
B 704B	95	100	25	135	28	31	8	40	200	250	350	300	400	162	22	25	330	486	283	135
B 804B	110	116	28	170	28	31	8	40	200	250	350	300	400	197	22	25	355	511	283	135
B 904B	120	127	32	180	28	31	8	40	250	300	400	360	460	213	26	30	400	617	346	155
