Dimensions - Adaptable Model

AGNEE
Single Reduction Worm Gear Boxes - Adaptable Type
Sizes AGNEE A 40 to AGNEE A 85

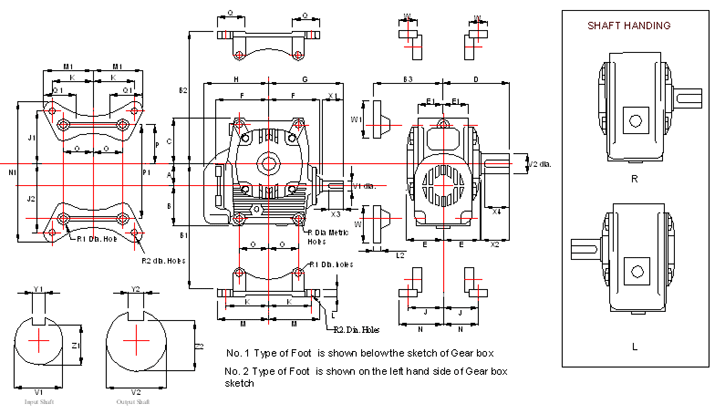

Adaptable Worm Gear Box-Dimensional Chart

Principal Dimensions (mm)

	BODY DIMENSIONS										SHAFT DIMENSIONS
SIZE	A	B	C	D	E	E1	F	G	H	R	V1	V2	X1	X2	X3	X4	Y1	Y2	Z1	Z2
40	41.3	50.8	57	98	49	37	71	110	89	8	15.8	19.0	41	48	38	44	5	5	18.3	21.5
50	50.8	58.7	71	117	59	43	86	133	111	8	15.8	25.4	48	57	44	54	5	6	18.3	28.4
60	60.3	68.3	84	140	68	51	98	159	130	10	19.0	28.5	57	70	54	67	5	8	22.0	32.5
75	73.0	77.8	103	168	81	64	119	191	154	10	22.2	31.7	70	83	67	79	6	8	25.2	35.7
85	85.7	90.6	116	200	98	76	133	219	175	12	25.4	38.1	83	98	79	95	6	10	28.4	43.1

	MOUNTING DIMENSIONS-NUMBER 1 FOOT													MOUNTING DIMENSIONS-NUMBER 2 FOOT
SIZE	B1	B2	E1	J	K	L	M	N	O	Q	R1	R2	W	B3	J1	J2	K	L	M1	N1	O	P	P1	Q1	R1	R2	W1
40	60	66	37	49	58	14	70	89	39	38	8	8	22	63	65	100	58	14	71	191	39	47	130	40	8	8	46	50	69	82	43	57	76	14	91	111	50	49	8	8	29	69	82	120	76	14	89	229	50	60	158	51	8	8	52	60	84	100	51	68	87	17	103	130	60	54	10	10	32	82	95	139	87	17	103	267	60	71	188	57	10	10	59
75	95	120	64	82	106	21	124	154	76	60	10	10	35	98	114	161	106	21	124	311	76	89	225	65	10	10	65
85	109	135	76	96	119	22	138	175	85	67	12	12	38	114	128	188	119	22	138	356	85	100	260	73	12	12	73

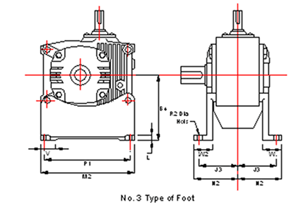

	NUMBER 3 FOOT
SIZE	B4	J3	L	P1	M2	N2	W2
40	102	65	11	130	152	38	32
50	127	72	14	159	191	49	38
60	146	84	17	187	220	54	41
75	173	102	19	226	260	60	48
85	194	116	21	260	298	67	49

Approximate Shipping Specification and Oil capacities

SIZE	40	50	60	75	85
Net Weight ( Kg)	7	13	20	31	49
Gross Weight (kg)	8	14	21	34	50
Volume Packed(cu.m)	0.007	0.013	0.22	0.034	0.048
Oil required at 1st filling (lit.)	0.28	0.28	0.57	0.85	1.42

As Improvements in design are continually being made, this specification is not to be regarded as binding detail, and dimensions are subject to alteration without notice.
