Dimensions - Vertical Model

AGNEE
Single Reduction Worm Gearboxes- Vertical Type

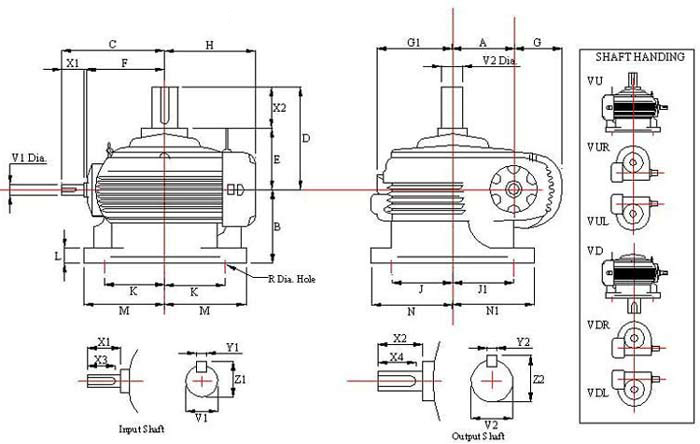

Size of AGNEE V 75 to AGNEE V 425 Vertical Worm Gear Box-Dimensional Chart

Principal Dimensions (mm)

	BODY DIMENSIONS									MOUNTING DIMENSIONS								SHAFT DIMENSIONS
SIZE	A	B	C	D	E	F	G	G1	H	J	J1	K	L	M	N	N1	R	V1	V2	X1	X2	X3	X4	Y1	Y2	Z1	Z2
75	73.0	110.0	195	184	92	115	77	100		97	97	87	20	103	116	116	13.5	22.2	31.7	70	82	60	70	6.0	8.0	25.2	35.7
100	101.6	171.5	229	216	121	159	111	152	222	114	114	114	32	140	140	140	20.6	31.8	44.5	67	89	54	83	8	10	35.8	49.5
125	127.0	190.5	260	248	133	184	124	178	254	140	139	139	32	165	165	165	20.6	38.1	50.8	73	102	73	95	10	12	43.1	56.8
150	152.4	209.5	279	273	140	200	133	197	270	152	152	152	38	184	184	184	23.8	38.1	57.1	76	114	73	114	10	16	43.1	65.2
175	177.8	228.6	318	298	151	229	143	222	305	177	177	177	38	210	210	210	23.8	44.4	63.5	86	127	83	114	12	16	50.4	71.5
200	203.2	241.3	343	311	159	251	149	254	307	203	203	203	44	238	238	238	27.0	44.4	69.8	89	140	83	127	12	19.1	50.4	79.3
250	254.0	279.4	425	375	194	311	160	298	378	260	260	260	51	311	299	273	31.8	57.2	82.5	121	152	89	143	16	22	65.2	93.5
300	304.8	304.8	495	413	216	368	177	356	441	317	317	317	57	368	368	305	34.9	63.5	95.2	124	171	89	162	16	25.4	71.5	107.9
350	355.6	330.2	572	483	254	425	203	413	521	355	355	355	64	425	413	362	41.3	76.2	114.3	149	191	146	210	19.1	31.8	85.7	130.3
425	431.8	406.4	699	546	305	514	241	502	629	431	431	431	76	502	502	502	41.3	82.5	139.7	181	203	152	222	22.3	38.2	93.5	158.7

Standard Nominal Ratios

75	5	7.5	10	12.5	15	20	25	30	-	40	50	60	70
100	5	7.5	10	-	15	20	25	30	35	40	50	60	70
125	5	7.5	10	-	15	20	25	30	35	40	50	60	70
150	5	7.5	10	-	15	20	25	30	35	40	50	60	70
175	5	7.5	10	-	15	20	25	30	-	40	50	60	70
200	5	7.5	10	-	15	20	25	30	-	40	50	60	70
250	5	7.5	10	-	15	20	25	30	-	40	50	60	70
300	5	7.5	10	12.5	15	20	25	30	35	40	50	60	70
350	5	7.5	10	12.5	15	20	25	30	-	40	50	60	70
425	-	-	10	-	15	20	25	30	-	40	50	60	70

Actual ratio may vary by +(-)10%

Approximate Shipping Specification and Oil capacities

SIZE	75	100	125	150	175	200	250	300	350	425
Net Weight ( Kg)	37	68	95	125	172	218	350	540	864	1340
Gross Weight (kg)	45	79	109	109	191	244	395	635	928	1440
Volume Packed(cu.m)	0.05	0.08	0.12	0.15	0.21	0.27	0.48	0.76	1.1	1.7
Oil required at 1st filling (lit.)	2.0	3.0	4.3	6.3	9.1	11.4	15.9	22.7	36.4	45

As Improvements in design are continually being made, this specification is not to be regarded as binding detail, and dimensions are subject to alteration without notice.
